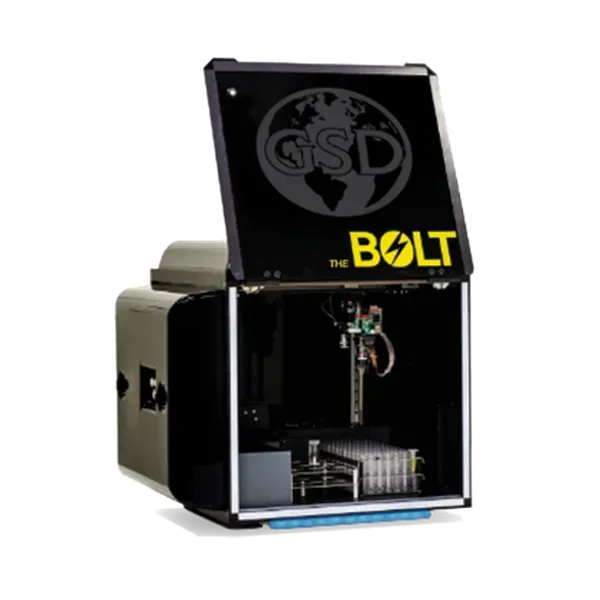

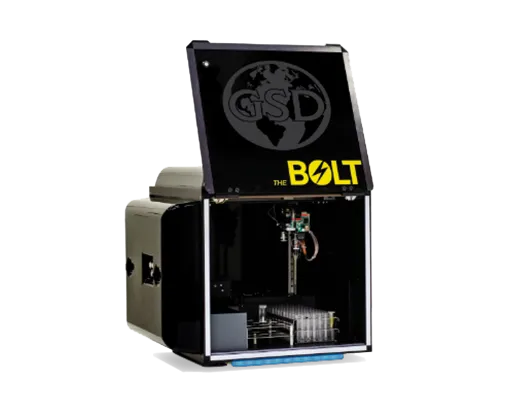

The BOLT


BOLTTM, một bộ xử lý ELISA+CLIA một đĩa, chia sẻ nhiều đặc điểm của ThunderBolt®, với thiết kế có thể tùy chỉnh hơn, năng suất thấp hơn và hiệu quả chi phí hơn. Phần mềm thân thiện với người dùng cung cấp một trải nghiệm đơn giản trong phòng thí nghiệm cho việc vận hành thiết bị. BOLTTM được sản xuất bởi Gold Standard Diagnostics.

Chúng tôi cung cấp nhiều phép thử ELISA đã được xác thực trên BOLTTM, từ các dòng sản phẩm sau:

  • SENSISpec Allergen ELISA Kits
  • BACSpec Pathogen ELISA Kits
  • Environment & Water ELISA Kits
  • Celer Mycotoxin ELISA Kits
  • BZERO Mycotoxin ELISA Kits
  • I’screen AFLA M1, I’screen AFLA M1 milk Mycotoxin ELISA Kits
  • Veterinary Drug Residues ELISA kits


Để có danh sách các phương pháp đã được xác thực, hãy liên hệ với Dịch vụ Khách hàng của chúng tôi:

Liên hệ với chúng tôi


Còn hàng

Thông Tin Sản Phẩm
Thông Tin Chi Tiết

The BOLTTM one-plate ELISA+CLIA analyzer is smart, compact, LIMS compatible, and highly precise open system that is able to automatically manage all the steps of any plate-based assay from premixing to final data handling.
For GSD ELISA kits, validated protocols have already been arranged and are ready-to-be transferred to the customer’s instrument, while customized methods can be developed and validated following given specifications.

Routine maintenance and support are provided with pre-aligned, transparent plans and premium packages to ensure the service.

SKU 00500 (ELISA); 00500-CL (ELISA+CLIA)
Sample Capacity Up to 96 samples
System Architecture Open, fully customizable
Reagent Positions 9 custom reagent positions (22-35 mm diameter bottles accepted)
Incubation temperature Room temperature to 40°C
Spectrophotometer 405, 450, 490, 550 and 630 nm wavelengths standard (custom available), 0 to 3.0 OD
Chemiluminescence Photomultiplier Tube (PMT) Detection type: glow Spectral range: 300-500 nm Dark count: 50 counts per second (standard) Measuring time: 200 ms (adjustable 1 to 1000 ms) Dynamic range: 6 decades (*optional configuration)
Power Supply 100-265V
Dimensions W: 48.3 cm, D: 53.3 cm, H: 55.8 cm (fits on a 60 cm deep standard laboratory bench)
Language Multi-language support
Services 00400 - CuM ELISA method development and verification for customer’ specifications
00400 - DE Installation and training at customer’s site
00500 - MA Regular preventive maintenance, to be done regularly every 6 months
00400 - FA On-site extraordinary intervention
00400 - Plus 2-years premium assistance package including 4 maintenance interventions, 1 extra on-site session, all spare parts included, remote assistance and training, priority phone line
Bộ Thông Số Kỹ Thuật
SKU
00500 (ELISA); 00500-CL (ELISA+CLIA)
