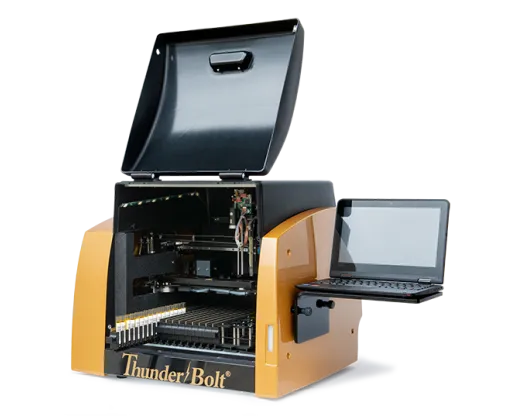

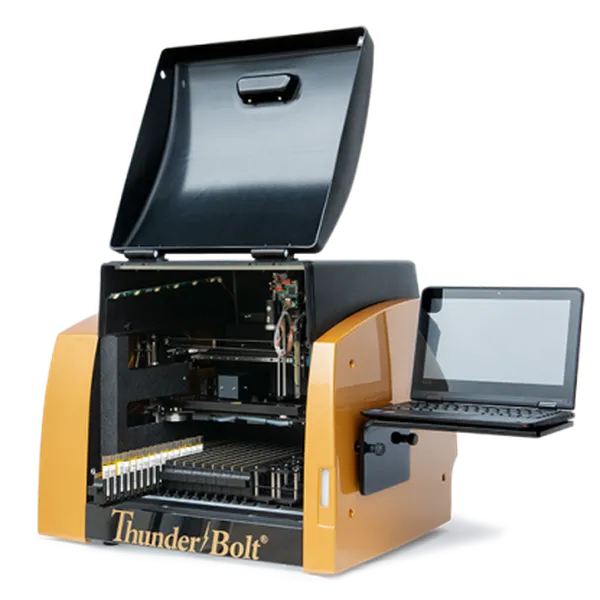

The ThunderBolt® ELISA analyzer is smart, compact, LIMS compatible, and highly precise open system that is able to automatically manage all the steps of any plate-based assay from premixing to final data handling. The ThunderBolt®, manufactured by Gold Standard Diagnostics, is available for both ELISA and Chemiluminescent (CLIA) applications.
For GSD ELISA kits, validated protocols have already been arranged and are ready-to-be transferred to the customer’s instrument, while customized methods can be developed and validated following given specifications.
Routine maintenance and support are provided with pre-aligned, transparent plans and premium packages to ensure the service.
| SKU | 00300 (ELISA); 00300-CL (ELISA+CLIA) |
|---|---|
| Sample Capacity | 12 racks of 16 samples. Up to 192 samples total |
| Reagent Capacity | 2 racks of 7 reagents. Up to 14 reagents total |
| System Architecture | Open, fully customizable |
| Incubation temperature | 2 positions. Room temperature to 40 °C |
| Spectrophotometer | 5 filters: 405, 450, 490, 550 and 630 nm wavelengths standard (custom available), Linear Range 0 to 3.0 OD |
| Chemiluminescence Photomultiplier Tube (PMT) | Detection type: glow, Spectral range: 300-500 nm, Dark count: 50 counts per second (standard), Measuring time: 200 ms (adjustable 1 to 1000 ms), Dynamic range: 6 decades (*optional configuration) |
| Power Supply | Voltage: 100-265V. Frequency: 50-60Hz. Consumption: 12W w/o incubator, 120W max |
| Dimensions | W: 64 cm, D: 57 cm, H: 45 cm (W: 25.2 in, D: 22.5 in, H: 17.7 in), H (open): 91.5 cm (36 in) |
| Language | Multi-language support |
| CE marked | Yes |
| Services | 00400 - CuM | ELISA method development and verification for customer’ specifications |
|---|---|---|
| 00400 - DE | Installation and training at customer’s site | |
| 00300 - MA | Regular preventive maintenance, to be done regularly every 6 months | |
| 00400 - FA | On-site extraordinary intervention | |
| 00400 - Plus | 2-years premium assistance package including 4 maintenance interventions, 1 extra on-site session, all spare parts included, remote assistance and training, priority phone line |
Kit Specifications
SKU
00300 (ELISA); 00300-CL (ELISA+CLIA)
